3D Cell visualization

Legacy MPX tutorial

MPX support has been removed from pixelator in versions after v0.30.0. To run the code in this tutorial, pin your installation to that release:

pip install pixelgen-pixelator==0.30.0

In this tutorial, we will make 3D visualization of the graph components that constitute cells in MPX data using Python.

Setup

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

from pathlib import Path
from pixelator.mpx import read, simple_aggregate

import plotly.graph_objects as go
import plotly.io as pio
from plotly import subplots

pio.renderers.default = "iframe_connected"

DATA_DIR = Path("<path to the directory to save datasets to>")

Load data

In this tutorial we will continue with the stimulated T cell data that we analyzed in the previous tutorial (Karlsson et al., Nature Methods 2024).

pg_data_combined = read(DATA_DIR/ "uropod_spatial.pxl")

polarity_scores = pg_data_combined.polarization
colocalization_scores = pg_data_combined.colocalization
edgelist = pg_data_combined.edgelist

Now we can select components with high colocalization for a specific marker pair to get some good example components to work with. First, we will filter our colocalization scores to keep only CD162/CD50 and then we will add the abundance data for CD162, CD37 and CD50 to the colocalization table.

# Create a new columns with marker_1/marker_2 using iloc
colocalization_scores['contrast'] = colocalization_scores['marker_1'] + '/' + colocalization_scores['marker_2']
colocalization_scores = colocalization_scores[colocalization_scores['contrast'] == 'CD162/CD50']

# Fetch data from pg_data_combined and convert to a DataFrame
marker_counts = pg_data_combined.adata.X[
    :, pg_data_combined.adata.var.index.isin(["CD162", "CD37", "CD50"])
]
marker_counts = pd.DataFrame(
    marker_counts,
    columns=["CD162", "CD37", "CD50"]
)
marker_counts["component"] = pg_data_combined.adata.obs.index

# Merge the colocalization scores and marker count data dataframes on 'component'
colocalization_scores = colocalization_scores.merge(marker_counts, on='component', how='left')

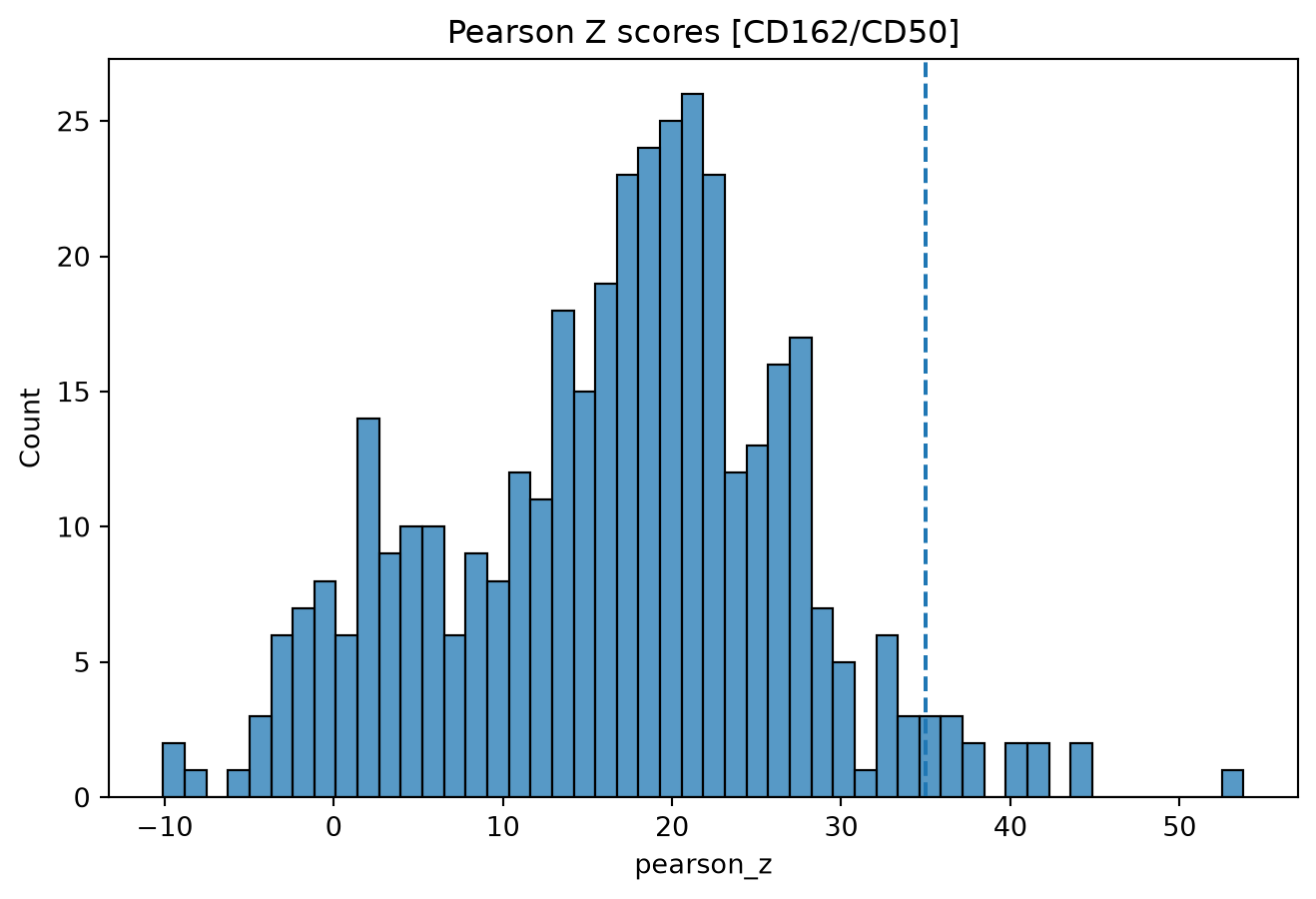

Next, we will select components with high colocalization scores for CD162/CD50. In the histogram below, we see the distribution of Pearson Z scores for the CD162/CD50 colocalization. Since we want to narrow down the selection of components, we set a threshold for the Pearson Z scores. Here, we use a threshold of 35 to keep the components with the highest colocalization scores. Note that the threshold is arbitrary and should be adjusted based on the data.

# Set Pearson Z threshold
pearson_z_threshold = 35

sns.histplot(colocalization_scores['pearson_z'], bins=50)
plt.axvline(pearson_z_threshold, linestyle="--")
plt.title("Pearson Z scores [CD162/CD50]")

Text(0.5, 1.0, 'Pearson Z scores [CD162/CD50]')

Then we apply our threshold to get a final selection of 7 components.

plot_components = colocalization_scores[
    (colocalization_scores['pearson_z'] > pearson_z_threshold)
].sort_values(by='CD162', ascending=False)

plot_components = plot_components[["component", "pearson_z", "CD162", "CD50", "CD37"]]
plot_components

	component	pearson_z	CD162	CD50	CD37
142	61cb84c709f41e7b_Stimulated	41.687521	947	1222	631
160	59b284adcc91ec91_Stimulated	44.136111	789	864	448
173	23606c9599265d9a_Stimulated	40.091311	690	707	452
208	18278b69dc73ad16_Stimulated	41.707346	486	736	249
209	437d692c40d6d601_Stimulated	53.791253	450	493	286
254	50cd2ae85ea1c0e1_Stimulated	44.591328	414	651	287
149	19ab7abc50018ac8_Stimulated	40.458924	303	467	116
135	898664166bbd71ae_Stimulated	35.591388	301	626	317
241	d33f7aa55f7874ff_Stimulated	36.517807	220	238	112
179	7778298975953f4f_Stimulated	36.881728	216	420	138
348	703a192bee0b36f2_Stimulated	37.979454	197	183	178
249	f4d9b2d31012177a_Stimulated	38.389434	178	161	119
167	bd77e6c5f6e229e5_Stimulated	36.717635	153	289	108
277	60523a26c6f19593_Stimulated	35.865508	136	111	38
228	8a91a136efcae912_Stimulated	35.421162	68	118	69

In addition to 2D layouts, we can also create three-dimensional layouts to visualize single cells. The pivot multidimensional scaling (pmds), Kamada–Kawai and Fruchterman-Reingold algorithms that we used in 2D Cell Visualization can also be used to create 3D layouts. With pixelator version >0.17 you can specify to pre-compute layouts which will be stored in the PXL file.

Now we can check if a pre-computed layout exists in our data set and otherwise generate a new 3D layout. Here we will use weighted pmds (wpmds_3d) to generate the 3D layout, which is similar to pmds but improves the results by leveraging edge weights based on transition probabilities in the computation.

Here, we select one of the components from our plot_components table.

component = "60523a26c6f19593_Stimulated"

if (hasattr(pg_data_combined, "precomputed_layouts") and pg_data_combined.precomputed_layouts is not None
    ):
        graph_layout_data = pg_data_combined.precomputed_layouts.filter(
            component_ids=component
        ).to_df()
else:
    graph = pg_data_combined.graph(component,
                               add_node_marker_counts=True,
                               simplify=True,
                               use_full_bipartite=True)
    graph_layout_data = graph.layout_coordinates("wpmds_3d",
                                            only_keep_a_pixels=True,
                                            get_node_marker_matrix=True)

Now when we have generated the 3D layouts, we can visualize single cells with protein abundance levels projected upon single UPIs on the reconstructed cell surface. The layout can be represented as a point cloud, and if we project the abundance of one of the uropod markers upon it, we see that counts are indeed clustered to a small area of the cell surface. Here we are displaying the log1p-transformed counts for CD162.

fig = go.Figure(
    data=[
        go.Scatter3d(
            x=graph_layout_data["x"],
            y=graph_layout_data["y"],
            z=graph_layout_data["z"],
            mode="markers",
            marker=dict(size=3, opacity=1, colorscale=["#cccccc", "#ff4500"]),
            marker_color=np.log1p(graph_layout_data["CD162"]),
        ),
    ]
)
fig.update_layout(title=component)
fig

We can also normalize the 3D coordinates to a sphere.

fig = go.Figure(
    data=[
        go.Scatter3d(
            x=graph_layout_data["x_norm"],
            y=graph_layout_data["y_norm"],
            z=graph_layout_data["z_norm"],
            mode="markers",
            marker=dict(size=3, opacity=1, colorscale=["#cccccc", "#ff4500"]),
            marker_color=np.log1p(graph_layout_data["CD162"]),
        ),
    ]
)
fig.update_layout(title=component)
fig

Viewing colocalization of markers

marker_1 = "CD50"
marker_2 = "CD162"

trace1 = go.Scatter3d(
    x=graph_layout_data["x"],
    y=graph_layout_data["y"],
    z=graph_layout_data["z"],
    mode="markers",
    marker=dict(size=3, opacity=1, colorscale=["#cccccc", "#ff4500"], color=np.log1p(graph_layout_data[marker_1])),
    scene="scene1",
)


# Create the second 3D plot trace
trace2 = go.Scatter3d(
    x=graph_layout_data["x"],
    y=graph_layout_data["y"],
    z=graph_layout_data["z"],
    mode="markers",
    marker=dict(size=3, opacity=1, colorscale=["#cccccc", "#ff4500"], color=np.log1p(graph_layout_data[marker_2])),
    scene="scene2",
)


f = subplots.make_subplots(rows=1, cols=2, specs=[[{'is_3d': True}, {'is_3d': True}]])

f.append_trace(trace1, 1, 1)
f.append_trace(trace2, 1, 2)

fig = go.FigureWidget(f)

def cam_change1(layout, camera):
    if fig.layout.scene2.camera == camera:
        return
    fig.layout.scene2.camera = camera

def cam_change2(layout, camera):
    if fig.layout.scene1.camera == camera:
        return
    fig.layout.scene1.camera = camera

fig.layout.scene1.on_change(cam_change1, 'camera')
fig.layout.scene2.on_change(cam_change2, 'camera')
display(fig)
